Product Highlights
Product Range
R32 Non Inverter Single Split
Capacities
3.0 - 5.0hp
Refrigerant
R32
View AR
SCAN THIS QR WITH YOUR PHONE TO
VIEW THE PRODUCT IN YOUR SPACE.
Advanced Ion Plasma Technology
Our advanced plasma ion technology purifies and sterilizes the air by effectively removing airborne contaminants.
Turbo Mode
This function is available in COOL and DRY modes. Upon activation, the unit will run at full power with the indoor fan running at high speed for 20 minutes. This will provide a fast cooling for immediate comfort.

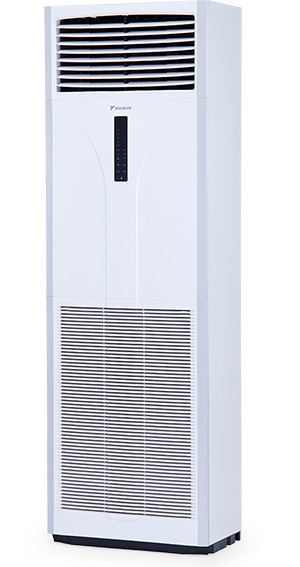

Far Air Throw
The floor standing is able to achieve air throw distance up to 25m*.
* Note: Based on FVC100/125/140A models.
Tech specs
Specifications
| FVN-A Series | |||||
|---|---|---|---|---|---|
| Indoor | FVC85AV1M | FVC100AV1M | FVC125AV1M | FVC140AV1M | |

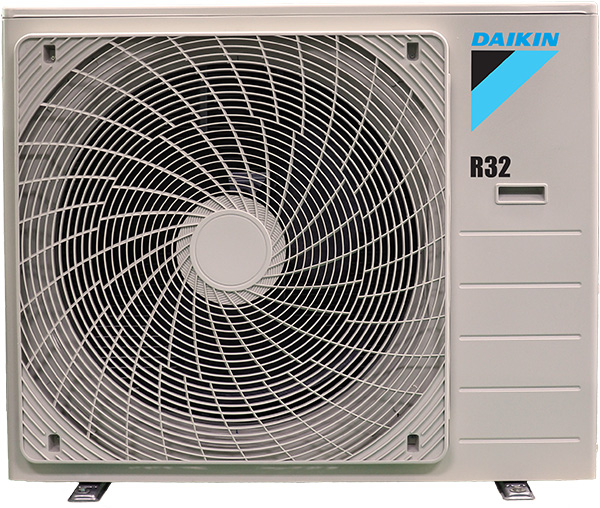

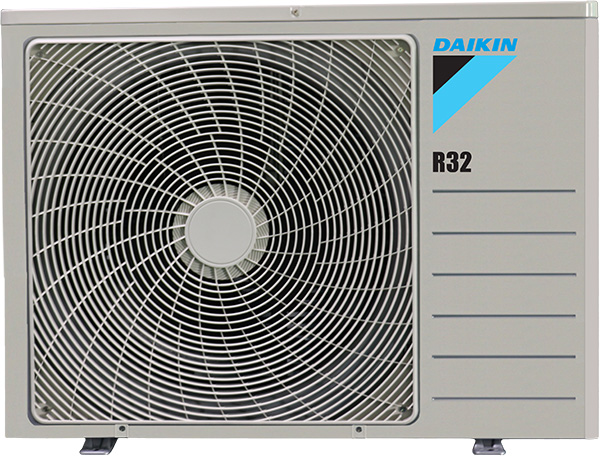

| Outdoor | RC85BY1M/ RC85AGY1M | RC100BY1M/ RC100AGY1M | RC125BY1M9/ RC125AGY1M9 | RC140BY1M9/ RC140AGY1M9 |
|
| Specifications / Model name | |||||
| Type | Non Inverter | ||||
| Horsepower | (hp) | 3.0 | 4.0 | 4.5 | 5.0 |
| Refrigerant | R32 | ||||
| Rated Cooling Capacity (Min-Max) | 29000 | 36000 | 42000 | 48000 | |
| Rated Power Consumption | (W) | 2740 | 3400 | 3700 | 4100 |
| Rated Running Current | (A) | 4.59 | 6.24 | 6.88 | 7.47 |
| EER | (Btu/hr/W/W/W) | 10.58 | 10.59 | 11.35 | 11.71 |
| Air Flow Rate | (CFM) | 675 / 625 / 530 | 1,240 / 1,144 / 1,040 | ||
| Power Source | (V/Ph/Hz) | 380-415 / 3 / 50 | |||
| Sound Pressure Level - Indoor | 44 / 42 / 39 | 54 / 52 / 50 |
|||
| Dimension - Indoor (H x W x D) | 1,850 x 600 x 270 | 1,850 x 600 x 350 | |||
| Dimension - Outdoor (H x W x D) | 695 x 930 x 350 | 852 x 1,030 x 400 | |||
| Unit weight - Indoor | (kg) | 42 | 45 | 48 | |
| Unit weight - Outdoor | (kg) | 57 | 64 | 79 | 84 |
| Copper Pipe Size - Liquid | (mm/in) | 9.52/3/8 | |||
| Copper Pipe Size - Gas | (mm/in) | 15.88/5/8 | |||
| Controller | Wireless (standard) & Wired (optional) | ||||
