Product Highlights
Product Range
R32 Non Inverter Single Split
Capacities
1.0 - 6.0hp
Refrigerant
R32
SCAN THIS QR WITH YOUR PHONE TO
VIEW THE PRODUCT IN YOUR SPACE.
HIGH PERFORMANCE
Utilizes high performance compressors to achieve higher specification. R32 refrigerant properties boost the capacity and efficiency of units for selected models to achieve full tonnage.

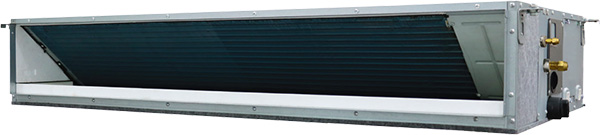

NEW BLOW THROUGH OPERATION
New blow through system platform allows for lower height of ceiling concealed unit and more quiet operation.

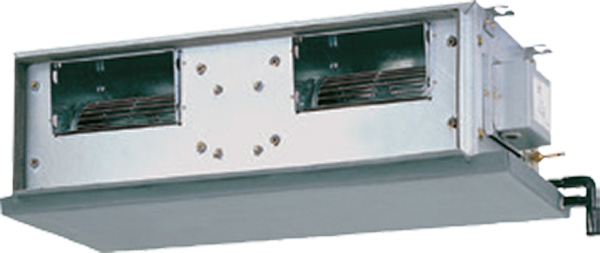

QUIET OPERATION WITH NEW DESIGN
New Ceiling Concealed platform with blow through operation provides uniform air distribution and quiet operation.
EASY INSTALLATION WITH LOW HEIGHT ACROSS ALL MODELS
One of the industry's most compact unit in the middle static pressure range with as low as 250mm height across all models. New Ceiling Concealed is able to fit into ceiling height as low as 260mm.
EASY MAINTENANCE
Designed for easy accessibility to drain pan, heat exchanger coil, blower and motor.
OUTDOOR BLUE FINS
Comes with standard blue fin outdoor unit's heat exchanger which are processed using a special anti-corrosion treatment. The surface is covered with a thin acrylic resin layer to enhance the fins' resistance to salt corrosion. Higher Corrosion Resistance Gold Fin is available (Optional)
Tech specs
Specifications
| Model | FDBC-A Series | FDMC-A Series | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Indoor | FDBC25AV1M | FDBC35AV1M | FDMC50AV1M | FDMC60AV1M | FDMC85AV1M | FDMC100AV1M | FDMC125AV1M | FDMC140AV1M | FDMC160AV1M | |
| Outdoor | RC25BV1M | RC35BV1M | RC50BV1M | RC60BV1M | RC85BV1M | RC100BV1M | RC125BY1M | RC140BY1M | RC160BY1M | |
| Specifications / Model name | ||||||||||
| Type | Non Inverter | |||||||||
| Horsepower (hp) | (hp) | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 5.0 | 6.0 |
| Refrigerant | R32 | |||||||||
| Rated Cooling Capacity (Btu/h) | (Btu/h) | 9000 | 12000 | 18,500 | 23,500 | 30,000 | 36,000 | 42,000 | 48,000 | 55,000 |
| Rated Power Consumption | (W) | 926 | 1220 | 1,750 | 2,290 | 2,710 | 3,200 | 3,660 | 4,100 | 4,950 |
| Rated Running Current | (A) | 4.26 | 5.60 | 7.74 | 10.30 | 12.40 | 14.80 | 6.85 | 7.51 | 8.73 |
| COP | (W/W) | 2.95 | 3.08 | 3.10 | 3.01 | 3.17 | 3.30 | 3.36 | 3.43 | 3.26 |
| CSPF | (Wh/Wh) | 3.13 | 3.27 | 3.29 | 3.20 | 3.37 | 3.50 | 3.57 | 3.64 | 3.46 |
| Air Flow Rate | (CFM) | 320 | 510 | 590 | 590 | 950 | 1,260 | 1,260 | 1,260 | 1,400 |
| Power Supply | (V/Ph/Hz) | 220-240/1/50 | 380-415/3/50 | |||||||
| Sound Pressure Level - Indoor (H/M/L) | (dBa) | 32/30/26 | 36/33/29 | 40/37/34 | 40/37/34 | 41/38/35 | 42/39/36 | 42/39/36 | 42/39/36 | 43/42/39 |
| Dimension - Indoor (H x W x D) | mm | 261 x 765 x 411 | 261 x 905 x 411 | 250 X 700 X 700 | 250 X 1,000 X 700 | 250 X 1,400 X 700 | ||||
| Dimension - Outdoor (H x W x D) | mm | 550 x 658 x 273 | 615 X 845 X 300 | 695 X 930 X 350 | 852 X 1,030 X 400 | |||||
| Unit weight - Indoor (kg) | 18 | 22 | 24 | 31 | 40 | 42 | 44 | |||
| Unit weight - Outdoor | (kg) | 25 | 28 | 40 | 46 | 53 | 62 | 79 | 84 | 94 |
| Copper Pipe Size - Liquid | (mm) | 6.35 | 9.53 | |||||||
| Copper Pipe Size - Gas | (mm) | 9.53 | 12.70 | 15.88 | 19.05 | |||||
| Controller | Wired | |||||||||
| Retail Sales Price | RM1,900.00 | RM2,270.00 | RM3,060.00 | RM3,520.00 | RM4,180.00 | RM5,390.00 | RM5,730.00 | RM6,260.00 | RM7,250.00 | |
