Inspired by the timeless beauty of ketupat weaving, our cassette air conditioner is designed with balance in every detail to deliver uniform cooling and total comfort for every space.

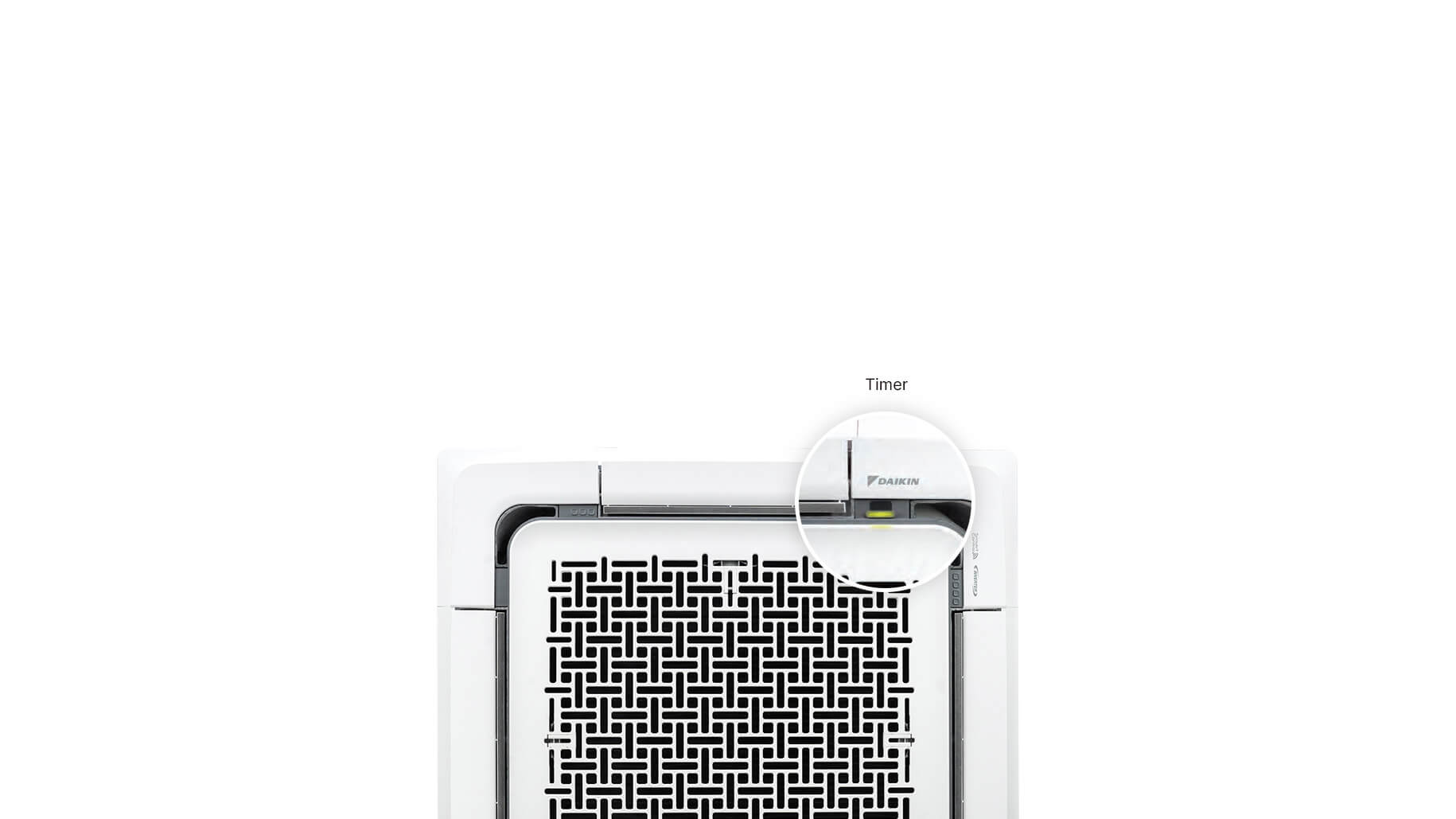

Simple yet focused indicator light bar that lets you stay in the know without the disturbance.

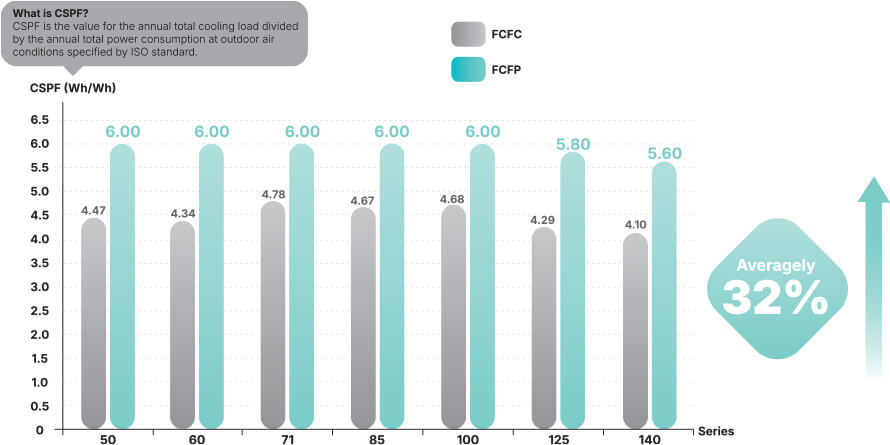

Daikin’s new deluxe inverter models deliver exceptional efficiency. The innovative FCFP Series achieves up to 32% higher efficiency compared to the R32 Standard Inverter series.

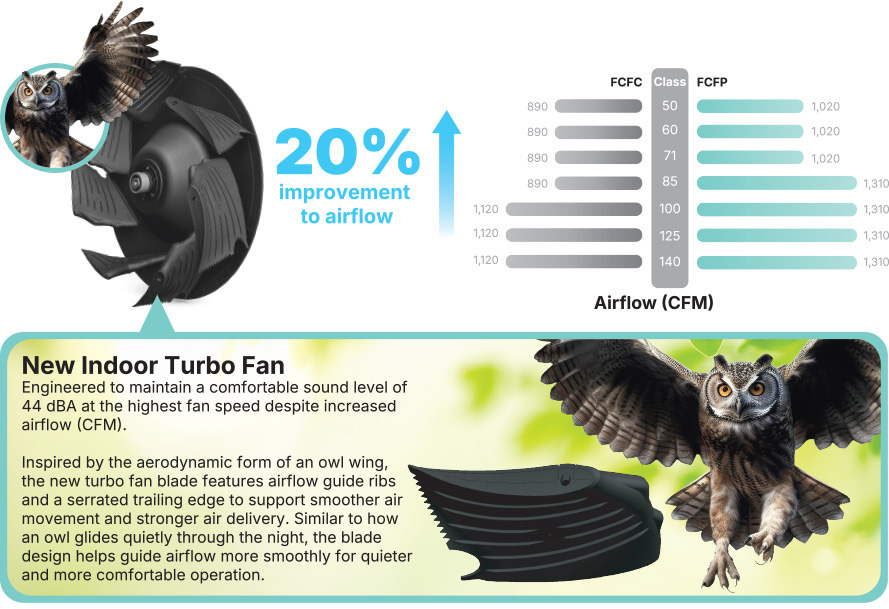

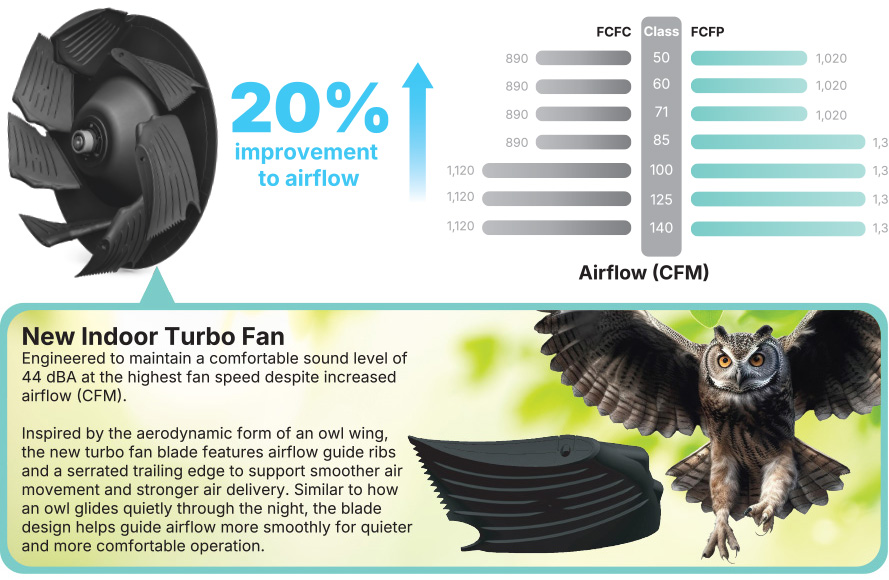

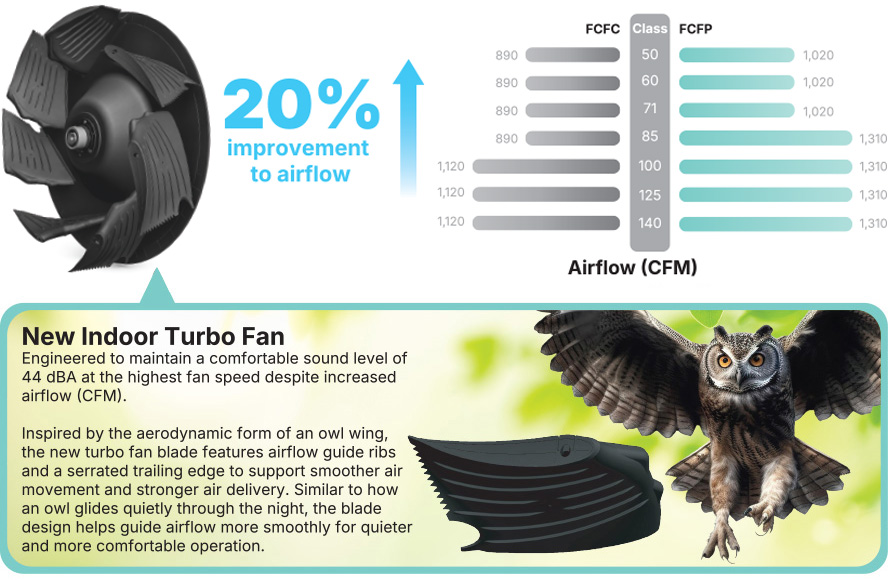

Introducing our newly enhanced indoor turbo fan design, featuring an optimized fin profile engineered to improve the way the fan interacts with airflow, air more efficiently, delivering enhanced airflow performance while supporting smoother and more effective air distribution.
Comfortable air conditioning for all room layouts and conditions

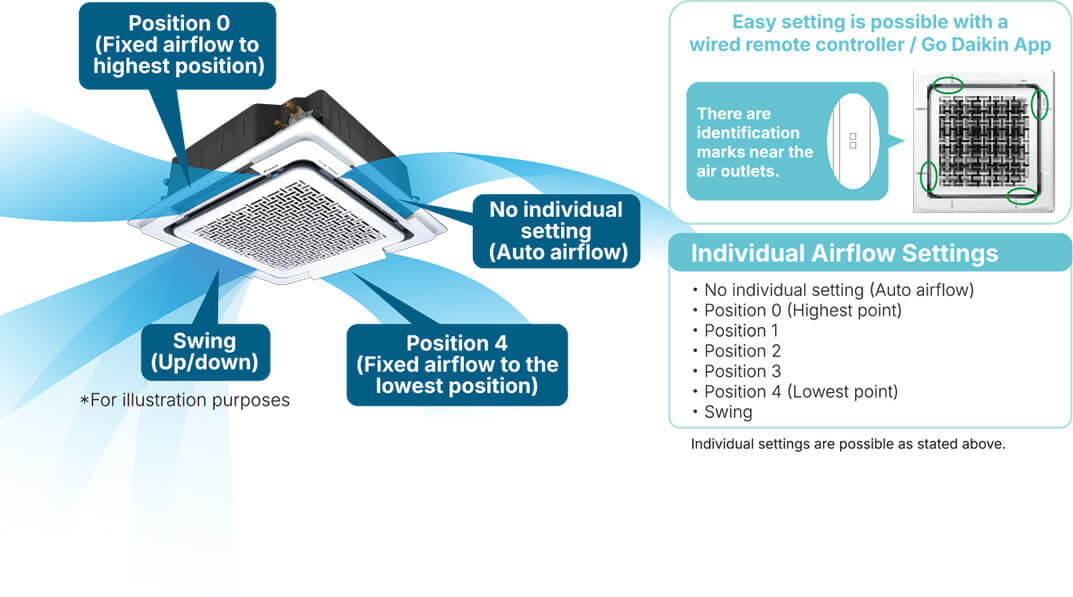

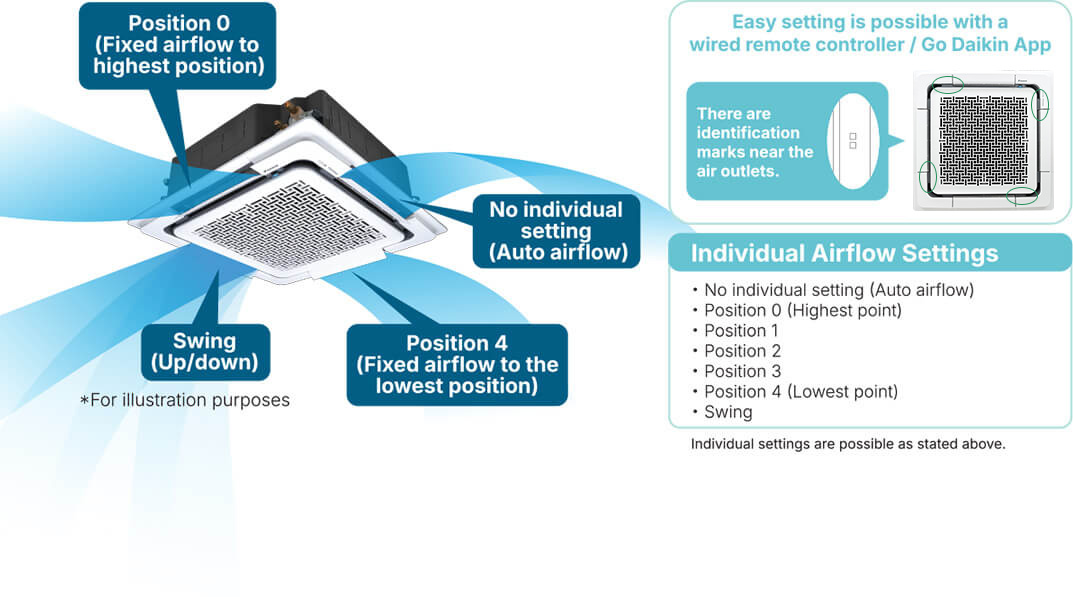

Set each louver direction independently to suit your space and comfort.
Perfect for all room layouts and usage needs.
Deliver air exactly where its’s needed.

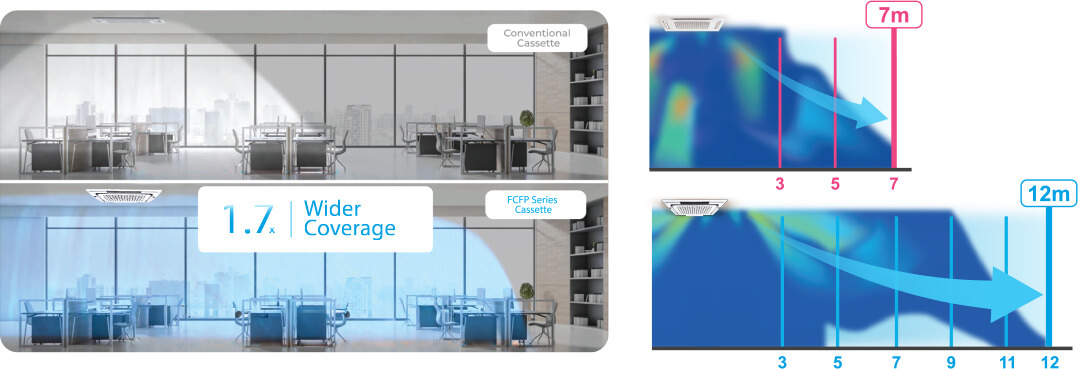

Designed to deliver wider coverage and even airflow distribution throughout your space while cooling off comfortably at your own leisure.
Test Organisation:
Daikin Research and Development Malaysia Sdn Bhd
Test Method:
The air throw distance is determined based on wind velocity of 0.25m/s and above.
Test Result:
The New FCFP Cassette achieved the furthest air throw distance of 12-meter compared to the conventional cassette, which is 7-meter. The airflow from FCFP Cassette is able to reach horizontally to the edge of the room. Therefore, FCFP Cassette managed to achieve 1.7 times wider coverage compared to the conventional cassette.
Note: The result was simulated based on the highest capacity model Class 140 with “High” fan speed setting. The louvers were set the highest position for both the conventional cassette and FCFP.

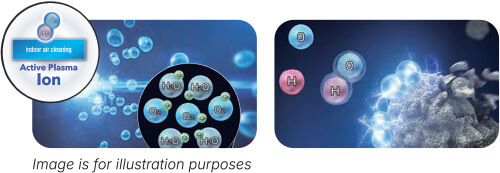

The plasma ion technology uses plasma discharge to release ions into the air, which combine with components of the air to form active species with strong oxidizing power like OH radical. They attach to the surface of fungi and allergens and decompose proteins in the air by oxidation.
Mechanism of reduction by Active Plasma lon
Concentration: 25,000 ions/cm3.*1
Our Gin-ION Filter is specially treated with positively charged silver ions that can effectively attract and decompose viruses and bacteria. This filter also inhibits fungal growth on its surface, promoting better indoor air quality and a healthier living environment. It comes as standard with the Cassette 3×3 panel.

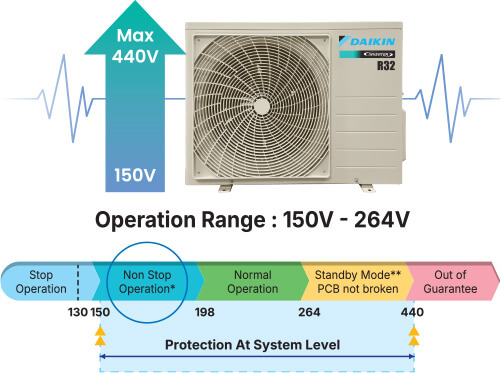

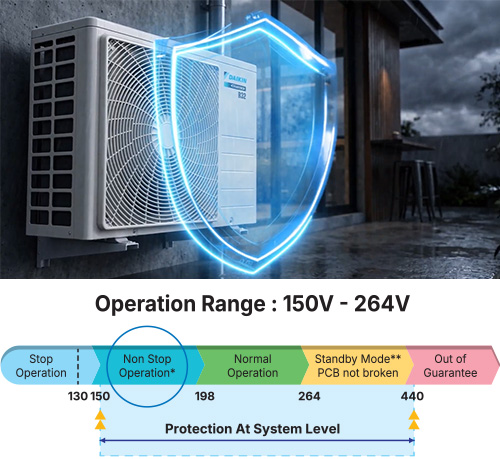

The printed circuit boards can easily handle large variations of voltage (150V-440V) and increase operation durability.
* Performance may not be 100%. The performance assurance at Rated voltage.
** 264-440V : AC will show error U2 and remain operation off even when usertries to turn it on.

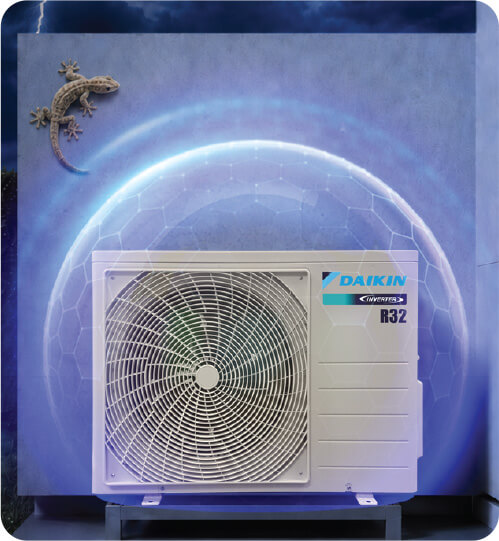

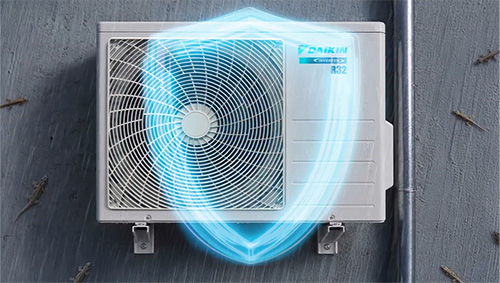

The Lizard Guard function is a protective feature built into the outdoor unit, minimizing damage to the inverter board and safeguarding essential components. This innovative design ensures the longevity and reliability of your air conditioning system.
*Available for RZFP50-100 only

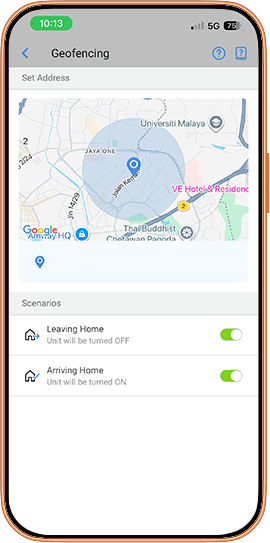

Geofencing lets your AC automatically turn on when you get home and off when you leave. You can easily set and adjust the distance to match your need.
| Model (Indoor Unit) | FCFP50AV1MF | FCFP60AV1MF | FCFP71AV1MF | FCFP85AV1MF | FCFP100AV1MF | FCFP125AV1MF | FCFP140AV1MF | ||
|---|---|---|---|---|---|---|---|---|---|
| Model (Outdoor Unit) | RZFP50AV1M | RZFP60AV1M | RZFP71AV1M | RZFP85AV1M | RZFP100AV1M | RZFP125AV1M | RZFP140AV1M | ||
| Panel | Wireless | BCR50HMF | |||||||
| Wired | BCR50HMW | ||||||||
| Rated Cooling Capacity (Min-Max) | Btu/h | 18,500 (7,800-19,100) | 20,500 (8,900-21,500) | 24,200 (10,900-27,300) | 30,000 (14,300-34,100) | 36,000 (17,100-38,200) | 42,700 (19,500-47,800) | 48,000 (21,200-52,900) |
|
| Rated Running Current | A | 6.01 | 6.97 | 8.62 | 10.60 | 14.90 | 16.20 | 19.90 | |
| Rated Power Consumption | W | 1,355 | 1,580 | 1,960 | 2,400 | 3,400 | 3,680 | 4,540 | |
| CSPF | Wh/Wh | 6.00 | 6.00 | 6.00 | 6.00 | 6.00 | 5.80 | 5.60 | |
| EER | W/W | 4.00 | 3.80 | 3.62 | 3.66 | 3.10 | 3.40 | 3.10 | |
| Power Supply | V/Ph/Hz | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | |
| Power from OUTDOOR | Power from OUTDOOR | Power from OUTDOOR | Power from OUTDOOR | Power from OUTDOOR | Power from OUTDOOR | Power from OUTDOOR | |||
| Airflow (H/M/L) | CFM | 1,020/830/710 | 1,020/830/710 | 1,020/830/710 | 1,310/1,090/910 | 1,310/1,090/910 | 1,310/1,090/910 | 1,310/1,090/910 | |
| Sound Pressure Level (H/M/L) | dB(A) | 44/39/35 | 44/39/35 | 44/39/35 | 48/43/38 | 48/43/38 | 49/45/41 | 49/45/41 | |
| Unit Dimensions (H x W x D) | Unit | mm | 256 X 840 X 840 | 256 X 840 X 840 | 256 X 840 X 840 | 298 X 840 X 840 | 298 X 840 X 840 | 298 X 840 X 840 | 298 X 840 X 840 |
| Packaging | mm | 263 X 880 X 880 | 263 X 880 X 880 | 263 X 880 X 880 | 305 X 880 X 880 | 305 X 880 X 880 | 305 X 880 X 880 | 305 X 880 X 880 | |
| Panel Dimensions (H x W x D) | Panel | mm | 50 X 950 X 950 | 50 X 950 X 950 | 50 X 950 X 950 | 50 X 950 X 950 | 50 X 950 X 950 | 50 X 950 X 950 | 50 X 950 X 950 |
| Packaging | mm | 137 X 1,017 X 1,006 | 137 X 1,017 X 1,006 | 137 X 1,017 X 1,006 | 137 X 1,017 X 1,006 | 137 X 1,017 X 1,006 | 137 X 1,017 X 1,006 | 137 X 1,017 X 1,006 | |
| Unit Weight | kg | 22.0 | 22.0 | 22.0 | 25.0 | 25.0 | 27.0 | 27.0 | |
| Panel Weight | kg | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | |
| Sound Pressure Level | dB(A) | 52 | 52 | 52 | 53 | 54 | 55 | 59 | |
| Unit Dimensions (H x W x D) | Unit | mm | 615 X 845 X 300 | 615 X 845 X 300 | 615 X 845 X 300 | 695 X 930 X 350 | 695 X 930 X 350 | 990 X 940 X 320 | 990 X 940 X 320 |
| Packaging | mm | 679 X 992 X 414 | 679 X 992 X 414 | 679 X 992 X 414 | 760 X 1,084 X 473 | 760 X 1,084 X 473 | 1,126 X 1,003 X 396 | 1,126 X 1,003 X 396 | |
| Unit Weight | kg | 35.0 | 35.0 | 35.0 | 45.0 | 45.0 | 62.0 | 62.0 | |
| Pipe Connection | Liquid | mm | 6.4 | 6.4 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| Gas | mm | 12.7 | 12.7 | 15.9 | 15.9 | 15.9 | 15.9 | 15.9 | |
| Maximum Piping Length | m | 30 | 30 | 30 | 50 | 50 | 50 | 50 | |
| Maximum Piping Elevation | m | 15 | 15 | 15 | 30 | 30 | 30 | 30 | |
| Retail Sales Price | Wireless | RM5,150 | RM5,310 | RM5,460 | RM6,230 | RM8,040 | RM8,340 | RM9,280 | |
| Wired | RM5,240 | RM5,410 | RM5,550 | RM6,320 | RM8,140 | RM8,440 | RM9,370 | ||
